Before you begin
Installation checklist
Washer and water
Residential washing machine, accessible cold-water tap, 40-75 PSI supply pressure, and compatible hose fittings.
Mounting area

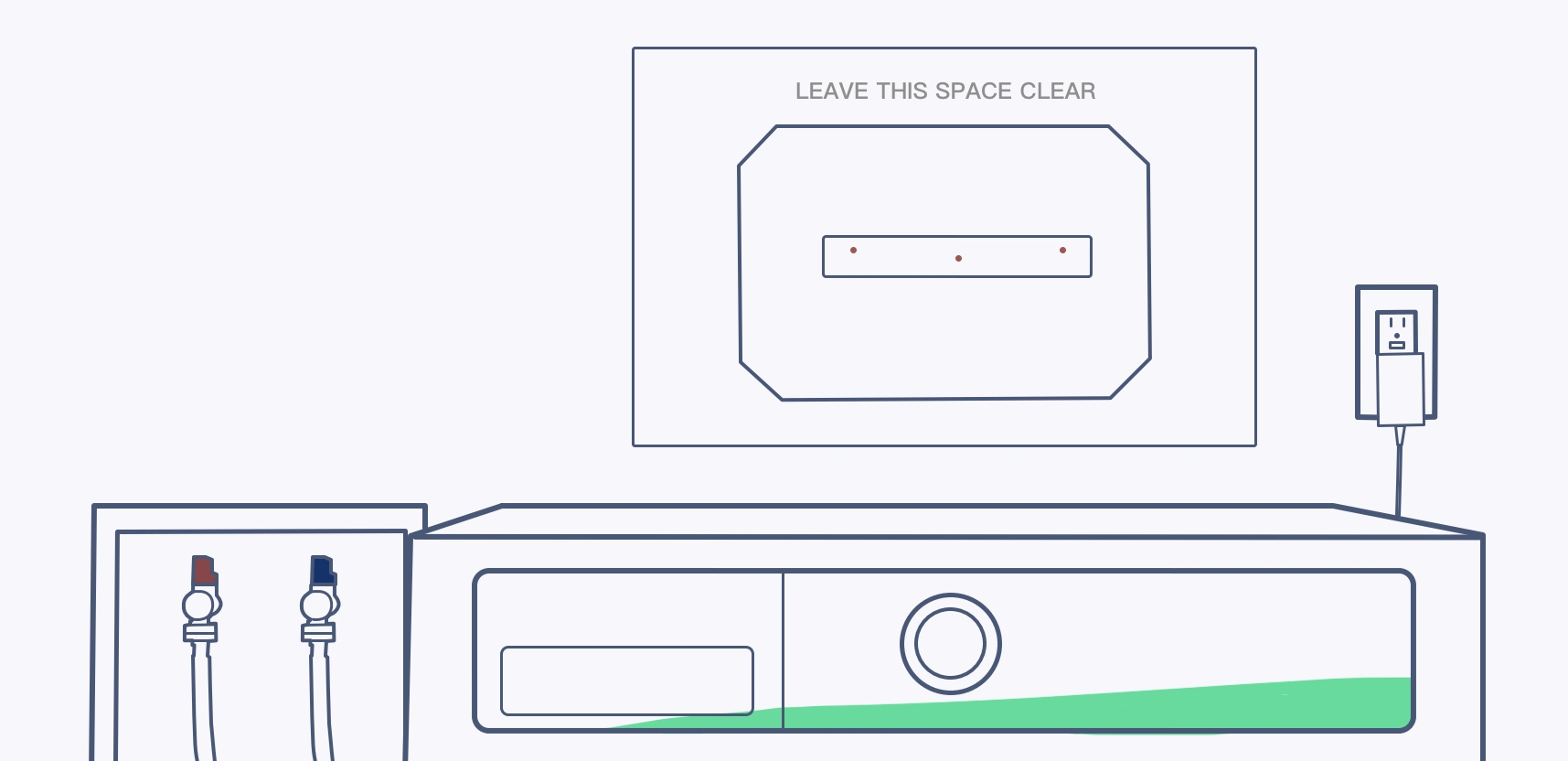

A level wall surface above and behind the washer, clear of concealed plumbing and electrical wiring.
Power
A suitable wall outlet for the supplied AC 100-240V input / DC 12V, 3A output adapter.
Installation sequence
Connect the unit in seven steps

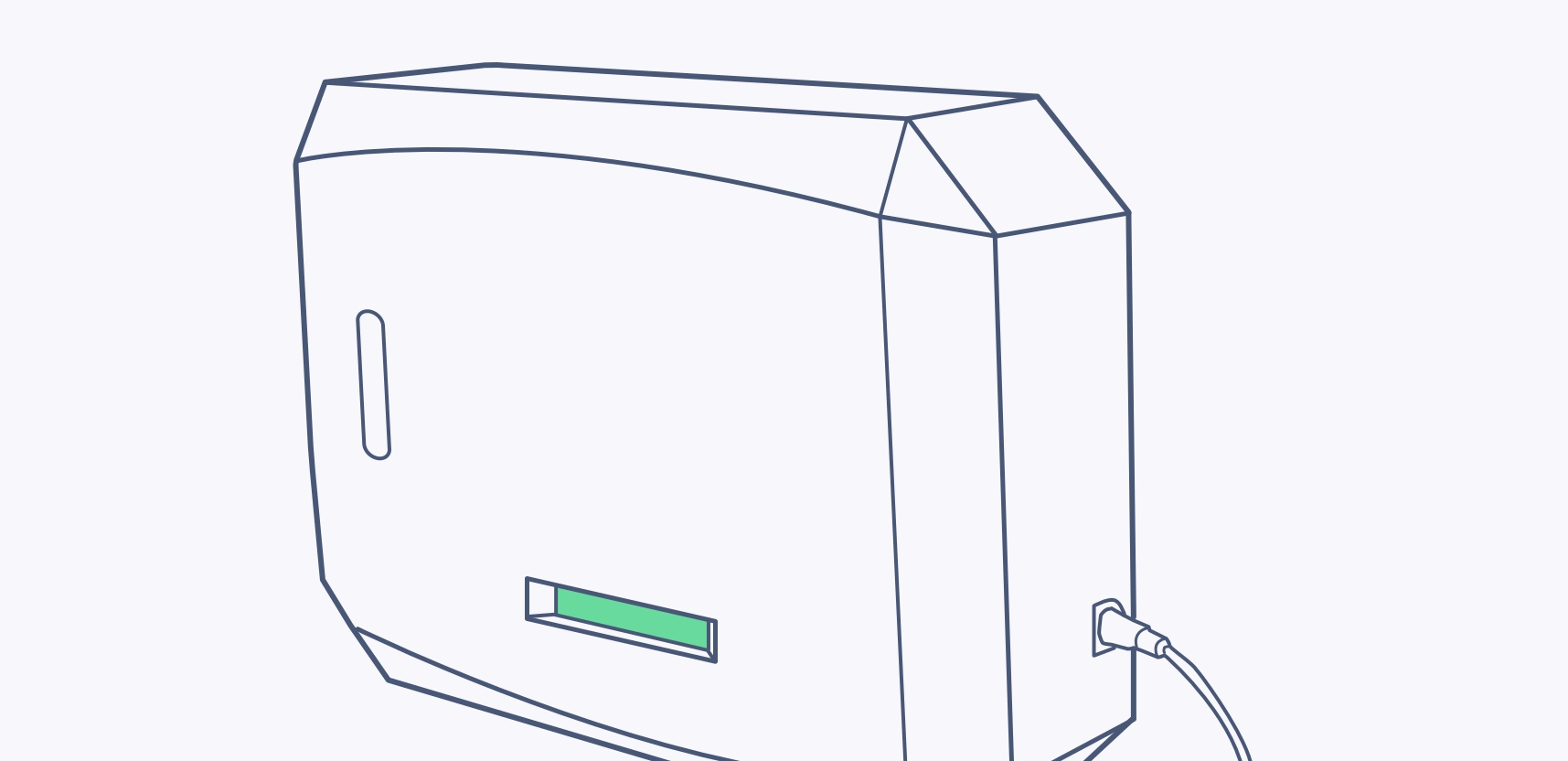

- Inspect the unit, adapter, hoses, fittings, mounting bracket, screws, and wall anchors for shipping damage or missing parts.

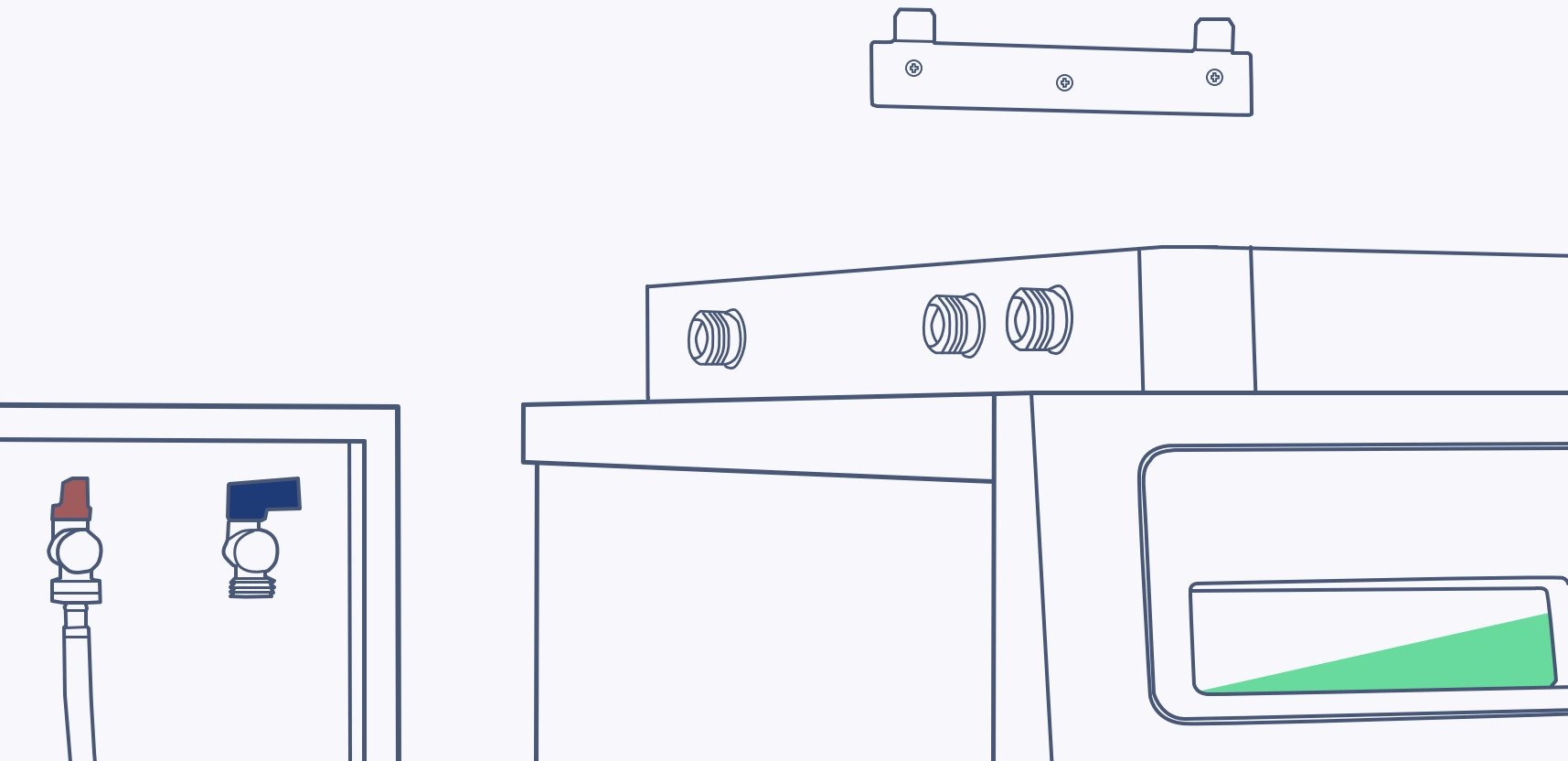

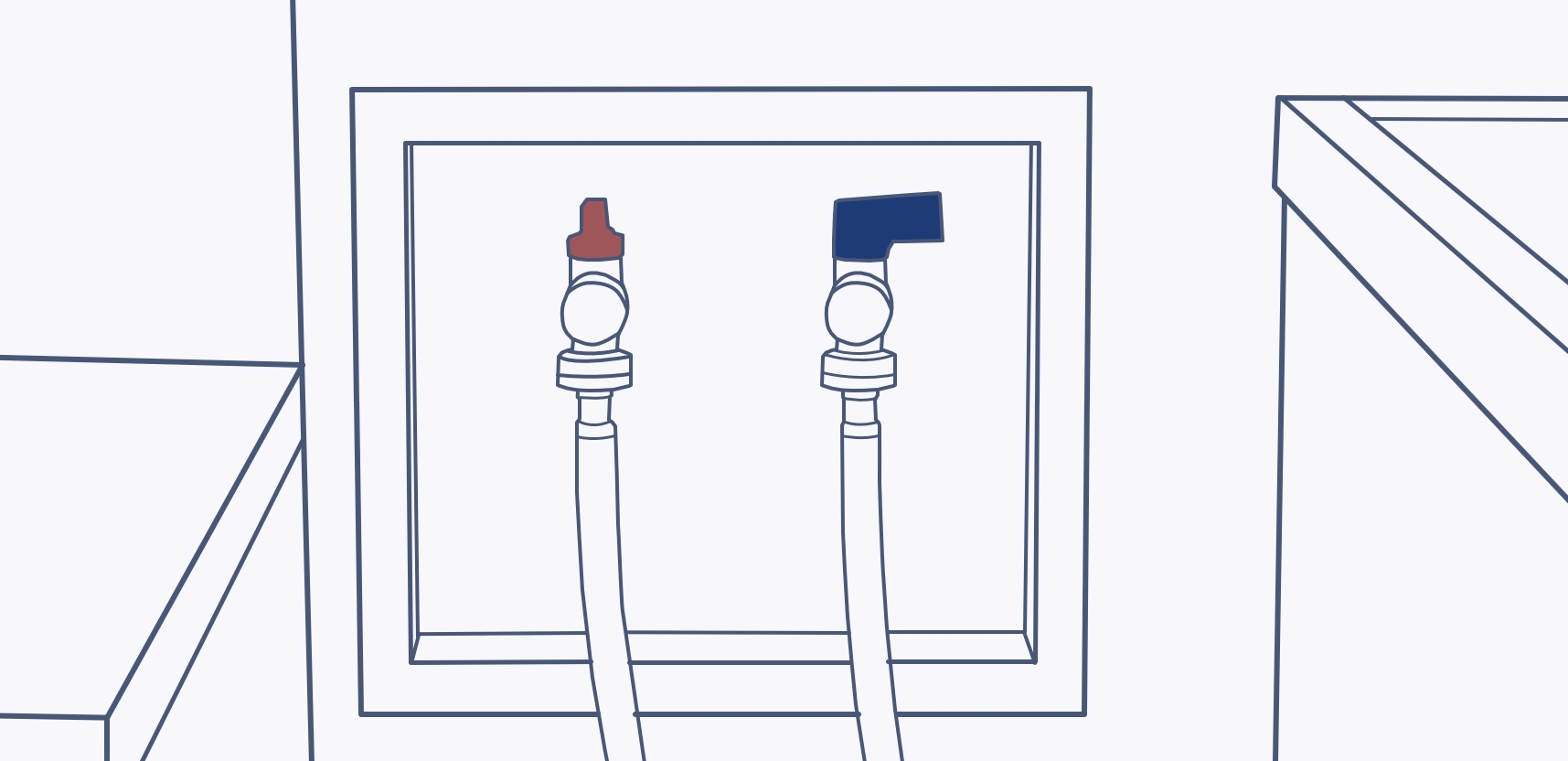

- Shut off the washer's water supplies, unplug the washer, and remove the cold-water hose from the supply tap.
- Set the rear flow-rate dial for the washer type as instructed in the product manual.

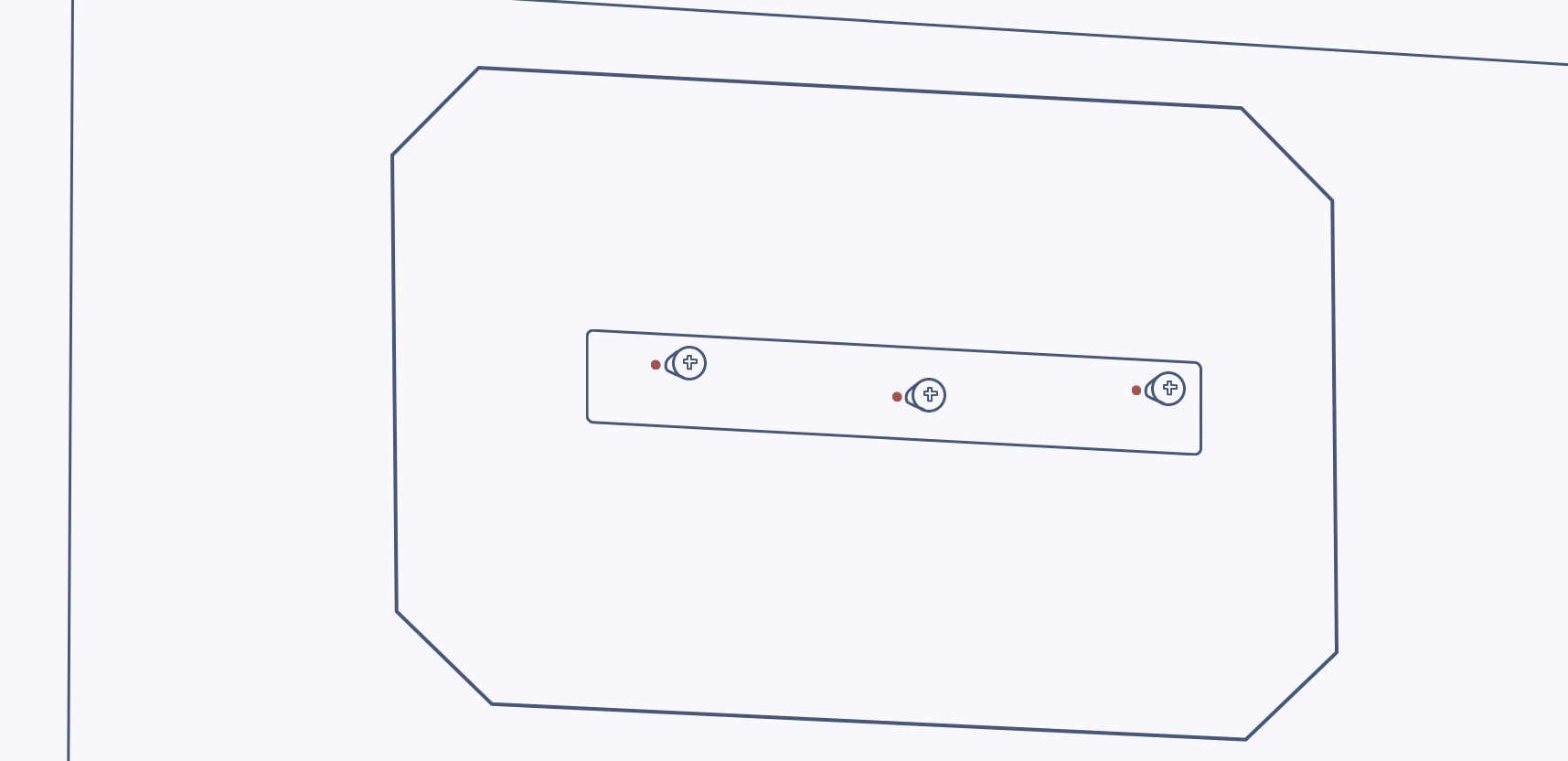

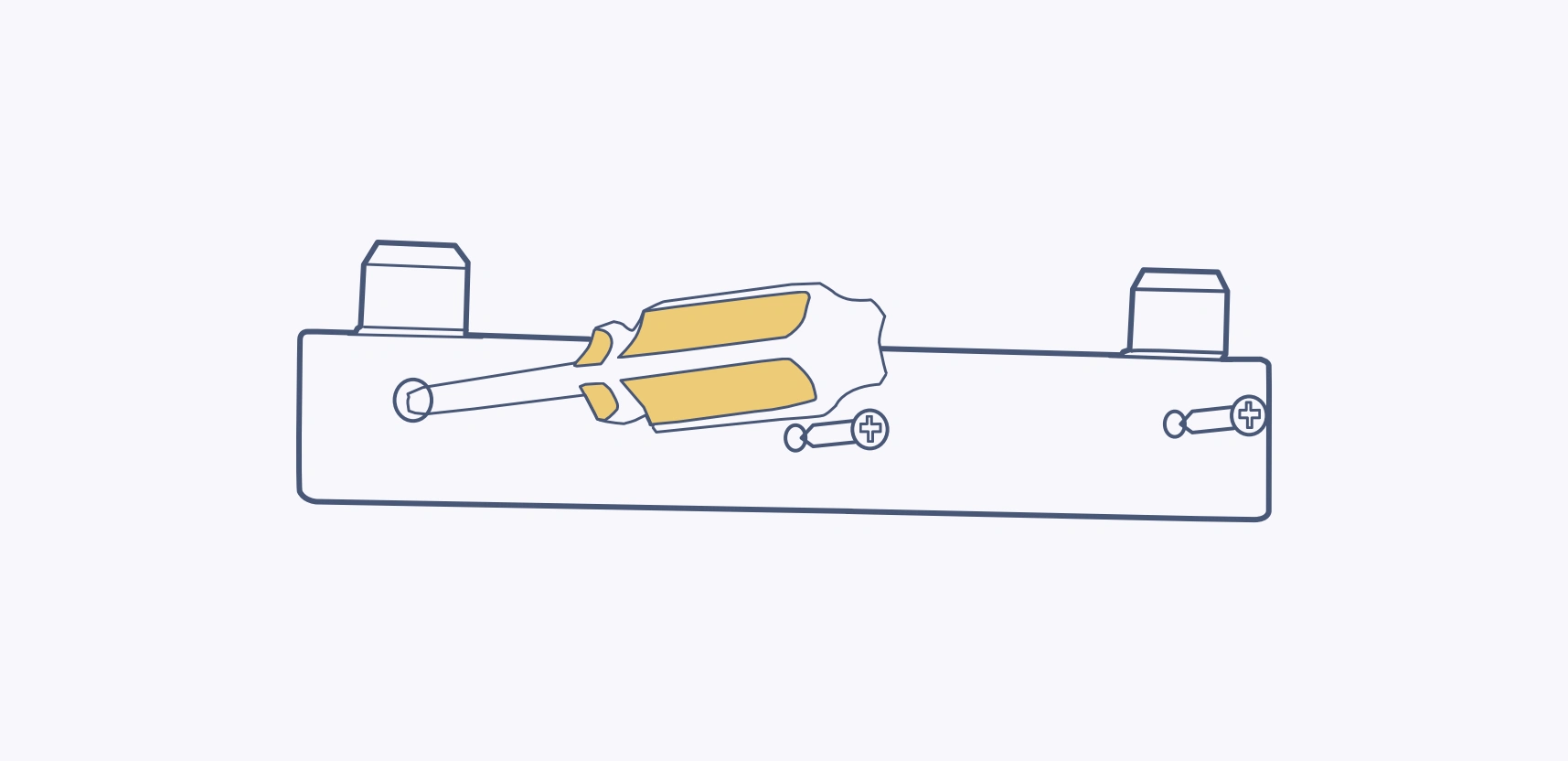

- Mount the bracket level above and behind the washer. Use a stud where possible or wall-specific anchors suitable for the load.

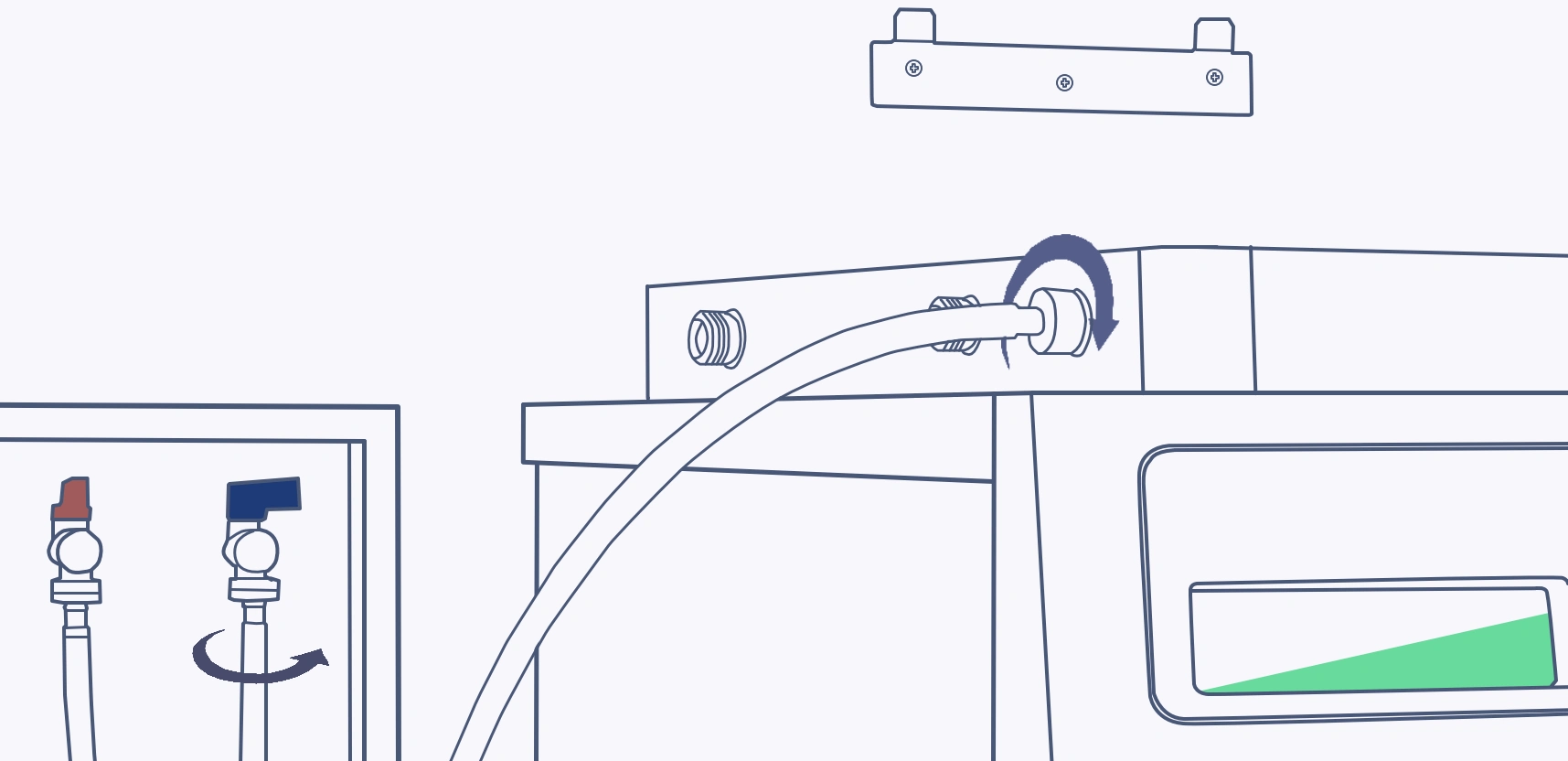

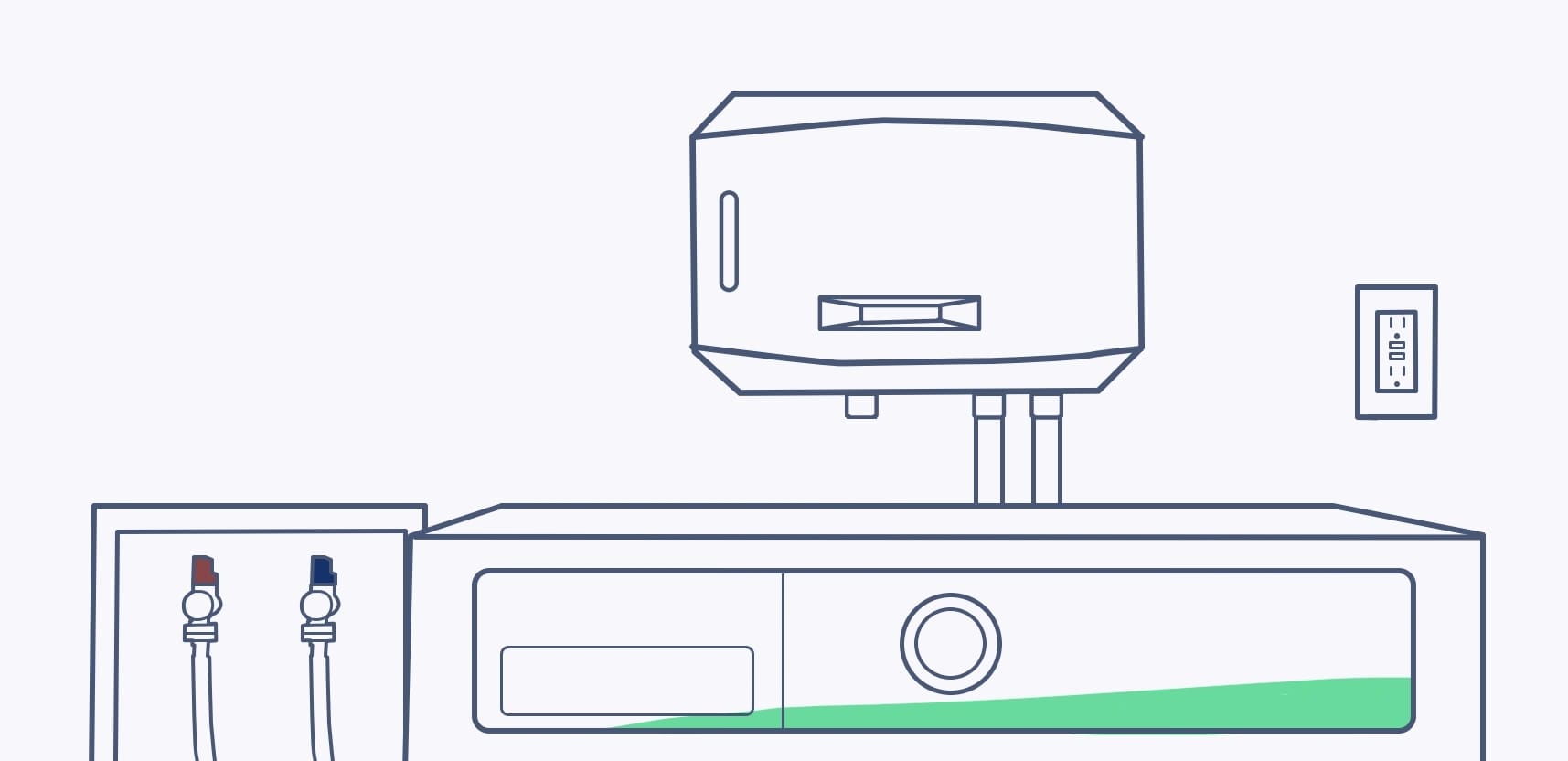

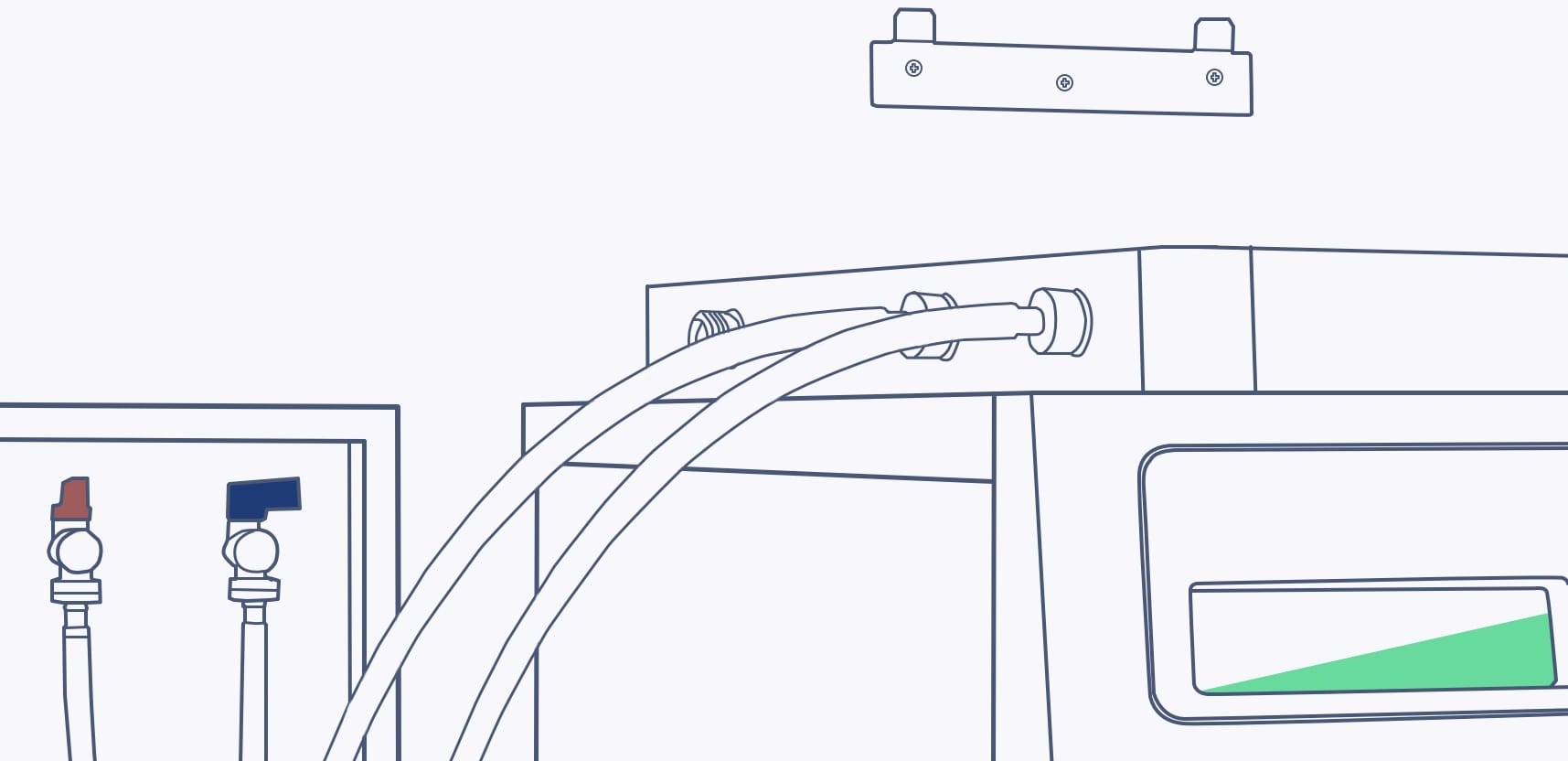

- Slide the unit securely onto the bracket. Connect the washer's cold-water hose to the unit output, then connect the supplied hose from the cold-water tap to the unit input.
- Confirm washers are seated, hoses are not kinked, and fittings are snug without overtightening. Keep the washer's hot-water hose installed.

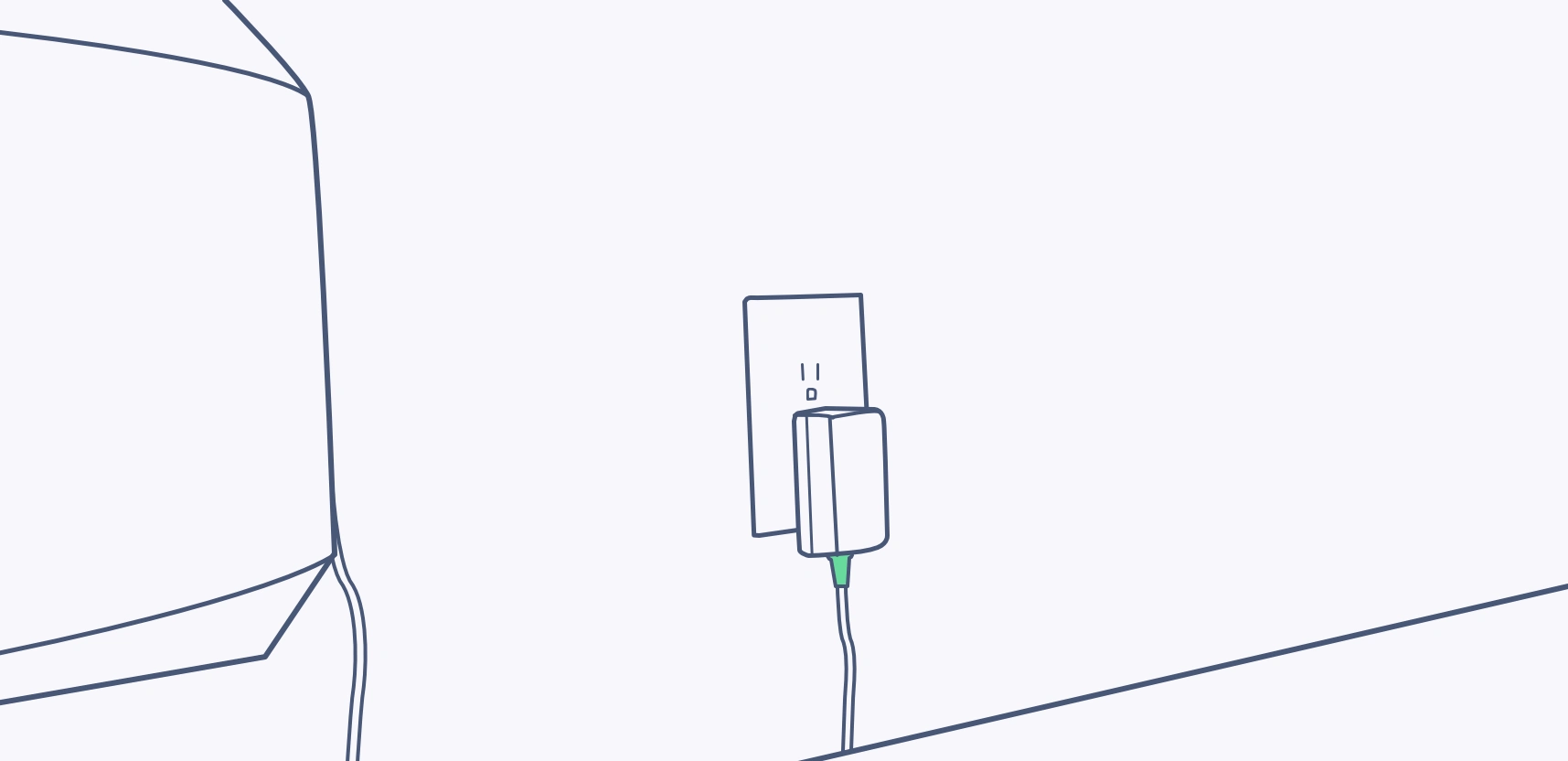

- Connect the supplied power adapter, restore the cold-water supply slowly, inspect every joint for leaks, and run a monitored test cycle.
Stop and correct any leak before use. If the wall, fittings, electrical supply, or washer inlet arrangement differs from the manual, use a qualified local installer.
First-use check
Confirm normal operation
During water flow
The front viewing window should show a blue operating light and visible bubbles. If not, confirm the flow-rate setting and water pressure.
After water stops
The system should complete its short shutdown cycle. Recheck all fittings for moisture after the first cycle.
Need help before mounting the unit?
Send your washer model and clear photos of the taps, hoses, outlet, and available wall area.
